FEEDER

CA -FEEDER

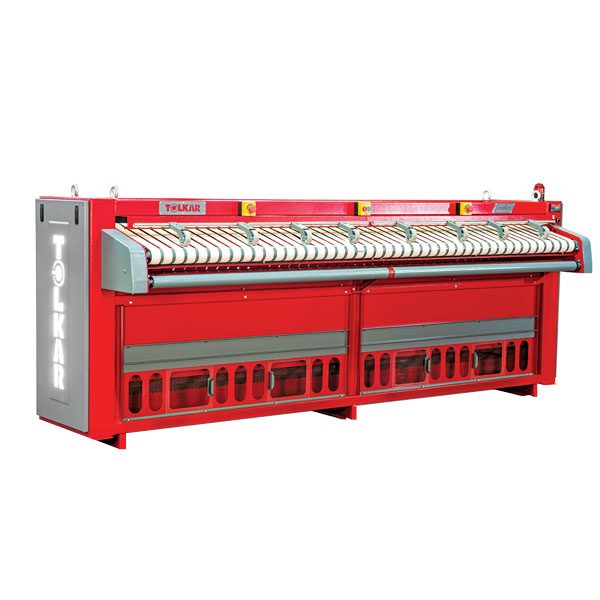

Automatic clip feeder with two, three, or four feeding stations.

Can operate in single-lane mode, or in both single and double-lane mode.
Standard working width 3500mm, optional versions available up to 4200mm.
Movable feeding table for manual feeding of items on multiple lanes.
Manual feeding is possible on multiple lanes.
When the machine is set for manual feeding, the clamping stations move
upwards and the feeding table lowers to an ergonomic working position for operators.
Maximum efficiency thanks to synchronous transmission function.
Optional quantitative statistical monitoring function available, capable of accurately measuring the quantity of linen at each station.
Perfect distribution and feeding with double-sided brushing and suction.
Manual feeding for small pieces.
Spreading with blades and technical brushing belts.
Touch screen control panel managed by PLC with 100 programs.
TFC 700, 7″ color touch screen panel.

Single-belt vacuum feeding table.
Working width 3000-3300-3500mm.

The vacuum feeding table is designed for high-capacity ironers to perform the most demanding high-quality finishing operations.
Suitable for linen, pillowcases, napkins, and tablecloths.
Ergonomically designed structure with high-efficiency centrifugal fans generating a strong airflow.
All operations such as spreading, folding, and tensioning, normally performed manually, are carried out mechanically, allowing significant savings.
In addition, the space between introduced sheets is reduced, considerably increasing productivity.
Speed and suction can be adjusted according to the type of material being processed.
Automatic synchronization of speed with the ironer.
